Cable Tray & Support System
Industrial Cable Tray & Channel Support Manufacturer in India
We are a leading Industrial Cable Tray & Channel Support manufacturer in India offering high-quality systems designed for safe, organized, and efficient cable management in industrial and commercial applications.
Our cable tray systems and channel supports ensure proper routing of electrical, networking, and power cables while maintaining durability, strength, and long service life.
Get a Quote Contact UsAbout Industrial Cable Tray & Channel Support
An Industrial Cable Tray System is used for supporting insulated electrical cables used for power distribution and communication. It provides safe and structured routing in industrial setups, IT parks, commercial buildings, and infrastructure projects.
Our channel support systems are engineered for high strength, corrosion resistance, and easy installation, ensuring long-term reliability in demanding environments.
We also provide customized cable tray solutions based on load capacity, installation height, coating type, and application requirements.
Industrial Cable Tray & Channel Support Products
Raceway Cable Trays
Raceway Cable Trays are an affordable and efficient solution for routing networking and power cables in IT companies and commercial environments. They are designed for durability, flexibility, and easy installation across various applications.
| Standard Length | 2500 mm |
| Thickness | 1.6 mm to 3 mm |
| Height Options | 30 mm, 40 mm, 50 mm, 75 mm, 100 mm |
| Flange | 15 mm, 20 mm, 30 mm |
| Width Options | 40 mm, 50 mm, 75 mm, 100 mm, 150 mm, 300 mm, 450 mm, 600 mm, 750 mm, 1000 mm, 1200 mm |
| Finish | GI Hot Dip, Pre-Galvanised (IS-277), Powder Coated, SS-202/304/316 |
C Channel
Heavy-duty support channel used for industrial cable tray installation and structural support.
| Type | C Channel |
| Material | G.I. / MS / SS |
| Use | Cable Tray Support |

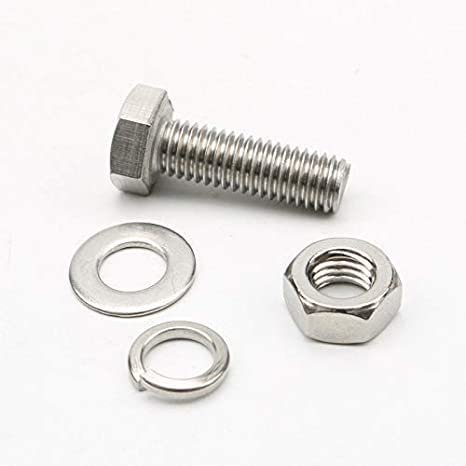

Nut Bolt Washer
High-strength Nut Bolt Washer set used for secure fastening and locking in industrial, electrical, and structural applications. Ensures tight grip and vibration resistance.
| Type | Nut, Bolt & Washer Set |
| Material | Mild Steel / Stainless Steel |
| Use | Industrial Fastening |
Hanging Thread Rod
Used for ceiling suspension of cable trays in industrial and commercial installations.
| Type | Thread Rod |
| Material | Mild Steel / Galvanized |
| Use | Hanging Support |
G.I. Z Channel
Galvanized Z Channel used for strong and corrosion-resistant cable support systems.
| Type | G.I. Z Channel |
| Material | Galvanized Iron |
| Use | Structural Support |
G.I. Slotted C Channel
Slotted design channel for flexible installation and easy cable tray mounting.
| Type | Slotted C Channel |
| Material | G.I. |
| Use | Adjustable Mounting |

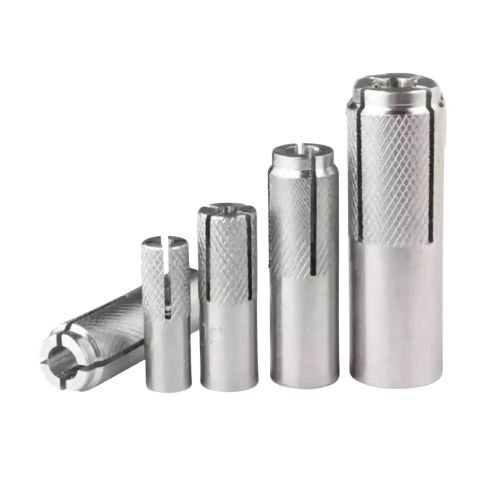

Anchor Bullet Fastener
Commonly known as a Drop-In Anchor, is a flush-mount mechanical expansion fastener designed for secure installations in non-cracked concrete.
| Type | Drop-In Expansion Bullet Fastener. |
| Material | Carbon Steel (Zinc-Plated), Mild Steel, or Stainless Steel |
| Use | Heavy-duty Structural Anchoring |
Key Features of Cable Tray System
Strong Load Capacity
Handles heavy industrial cable loads
Easy Installation
Quick and flexible mounting system
Corrosion Resistant
Long-lasting galvanized protection
Low Maintenance
Minimal servicing required
How Cable Tray System Works
A cable tray system provides a structured pathway for electrical and communication cables, ensuring safety and organization in industrial environments.
It prevents cable damage, reduces overheating risk, and allows easy maintenance and expansion of wiring systems.
Benefits of Cable Tray System
Better Cable Management
Improved Safety
Long Life System
Easy Expansion
Technical Specifications
| Standard Length | 2500mm |
| Thickness | 1.2mm – 3mm |
| Height | 30mm – 100mm |
| Width | 40mm – 1000mm |
| Finish | GI Hot Dip / Pre-GI / Powder Coated / SS 304 / 316 |
Manufactured as per industrial standards ensuring durability, safety, and high performance.
Applications of Cable Tray System
Industries
Commercial Buildings
Power Plants
IT & Data Centers
Looking for Industrial Cable Tray Solutions?
Get durable, high-quality Industrial Cable Tray & Channel Support systems for safe and efficient cable management.
Get Quote
