MCCB Panel Manufacturer in India

We are a leading MCCB Panel manufacturer in India offering high-quality MCCB panels designed for safe and efficient electrical distribution and protection. Our panels are built using premium components to ensure durability, overload protection, and long-term reliability.

Our Molded Case Circuit Breaker (MCCB) panels are widely used in industrial plants, commercial buildings, and power distribution systems where precise circuit protection and load management are critical.

Get a Quote Contact Us

What is MCCB Panel

An MCCB Panel (Molded Case Circuit Breaker Panel) serves as a central low-voltage distribution system designed to isolate and protect electrical networks against heavy overloads, short-circuits, and ground faults. As a leading MCCB panel supplier, our engineering team manufactures customized assemblies optimized for longevity, safety, and operation.

Equipped with adjustable trip settings, thermal-magnetic releases, and optional microprocessor-based electronic trip units, our panels provide precise circuit selectivity and coordination, preventing unexpected plant downtime.

Every panel is custom-fabricated with high-grade sheet metal enclosures (IP54/IP65 rated), high-conductivity copper/aluminum busbars, and internal compartmentalization based on project specifications.

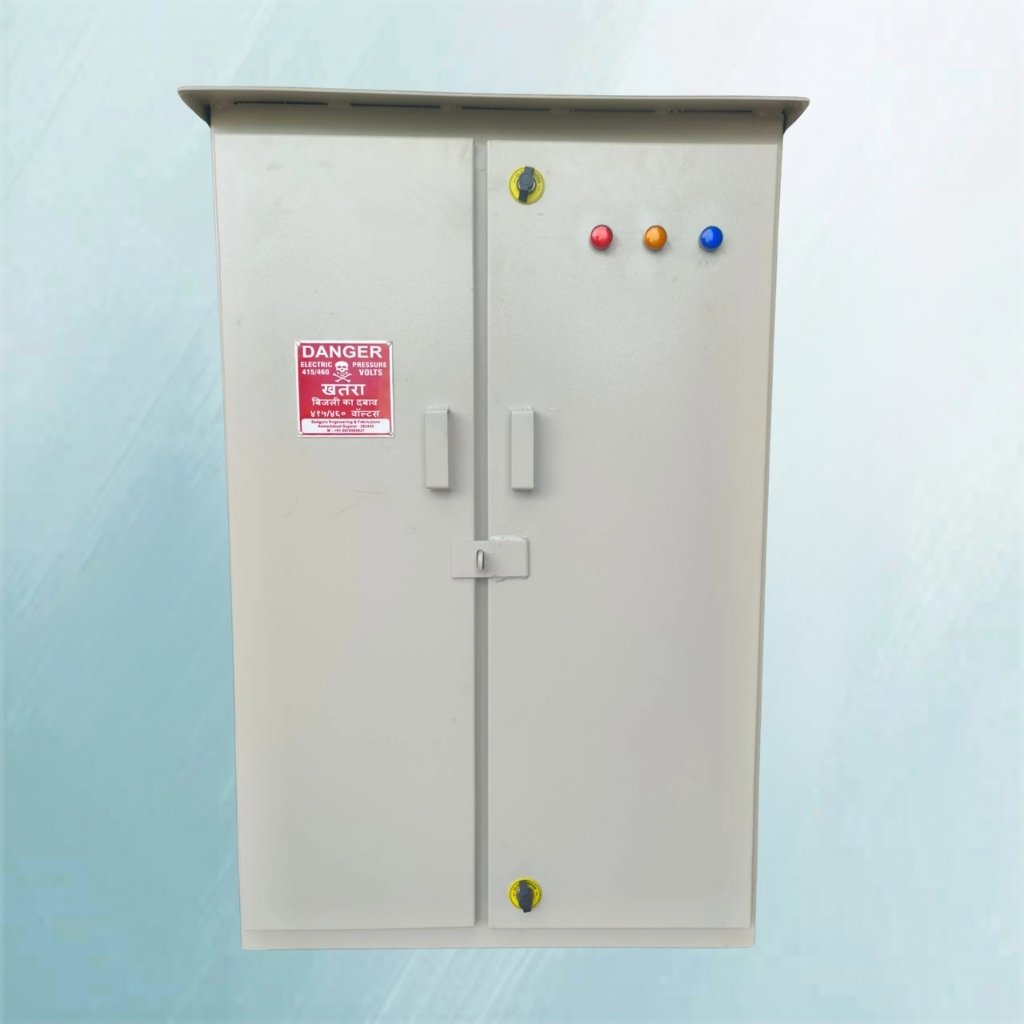

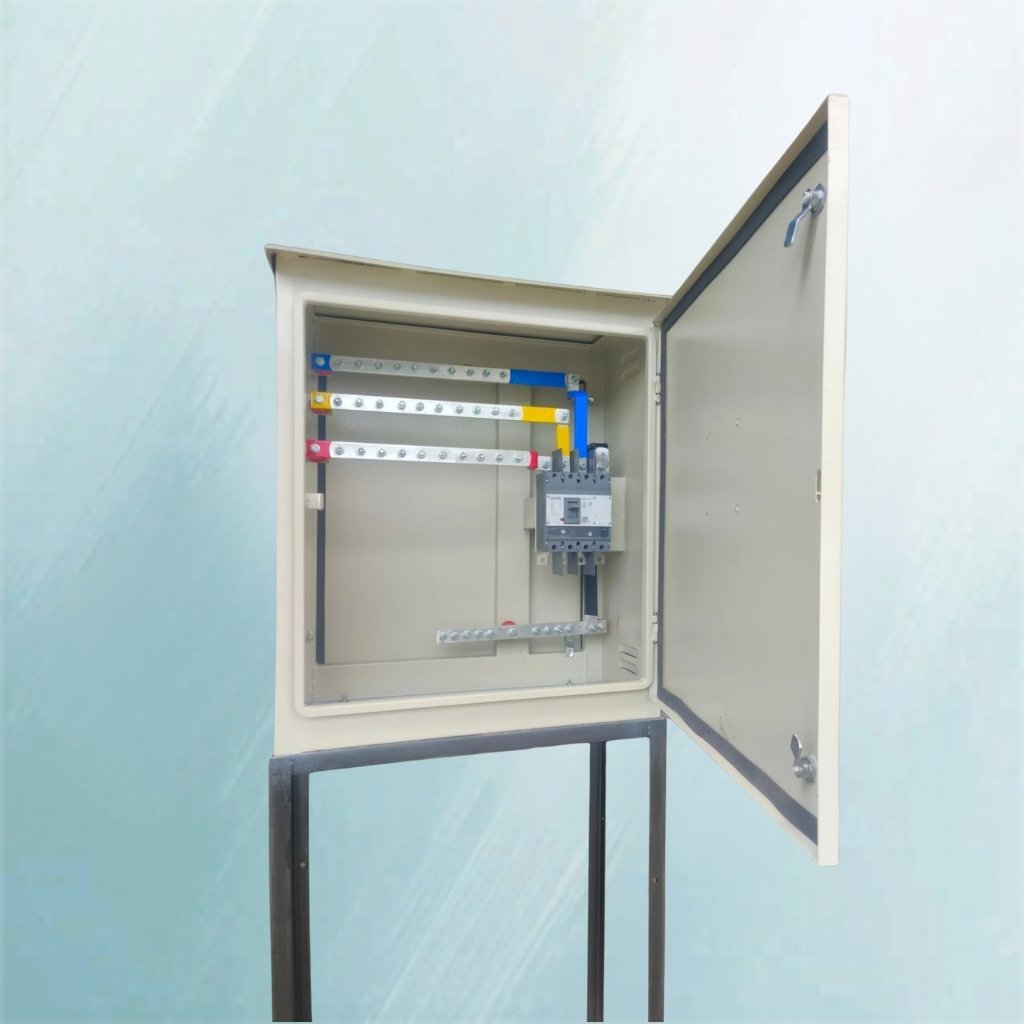

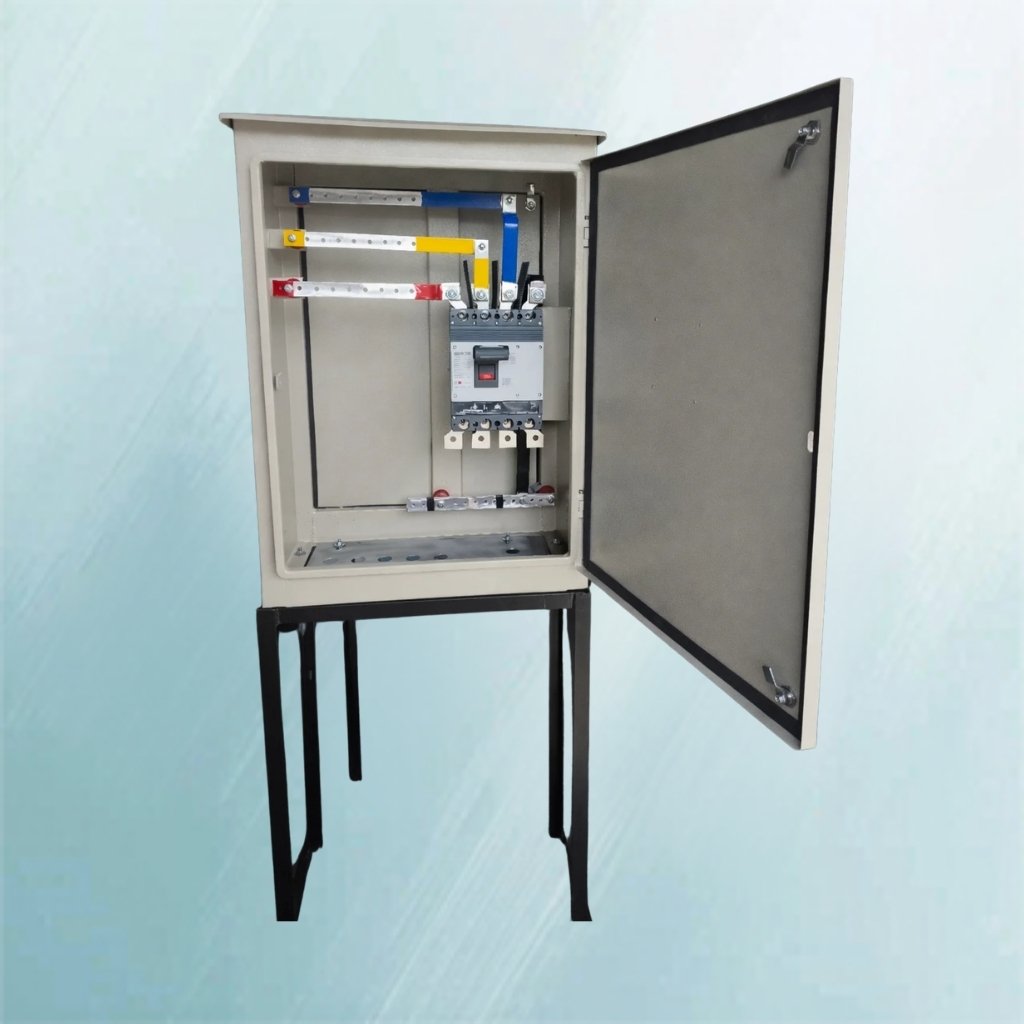

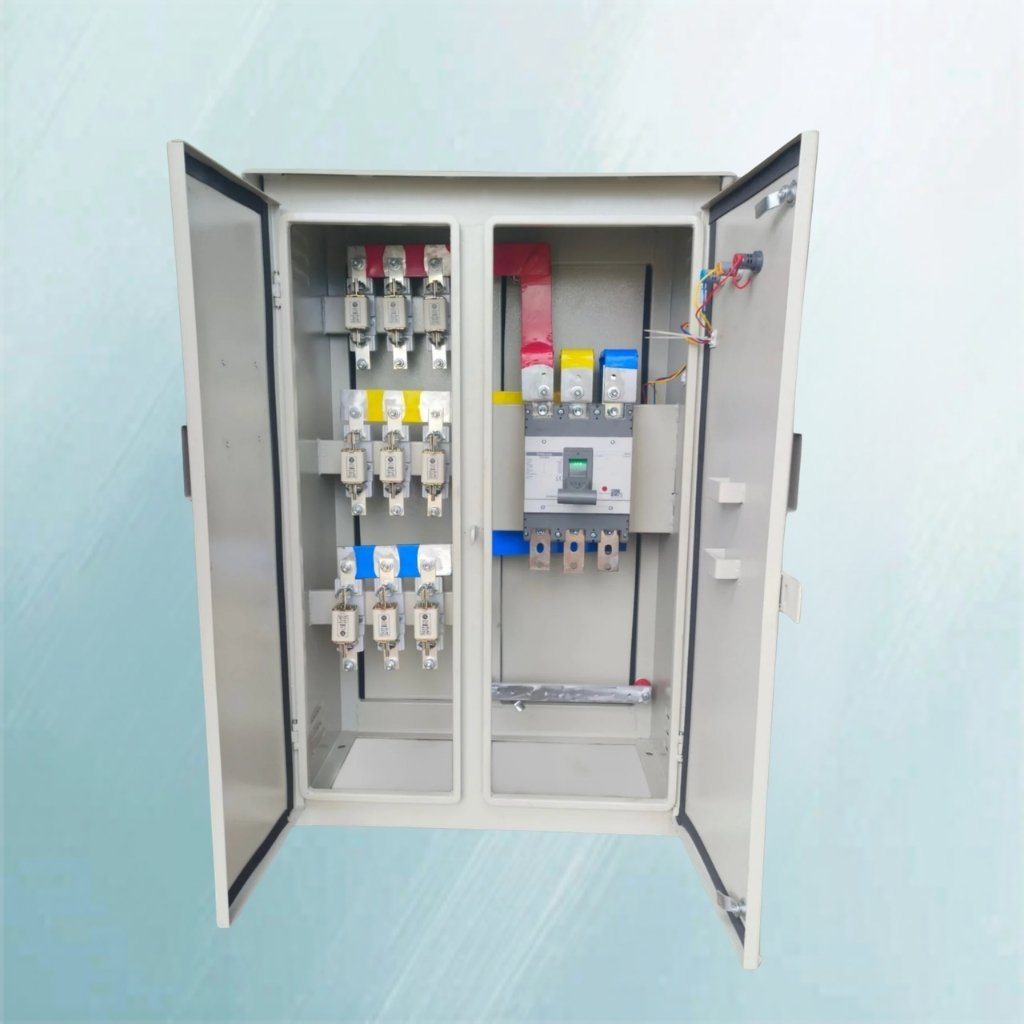

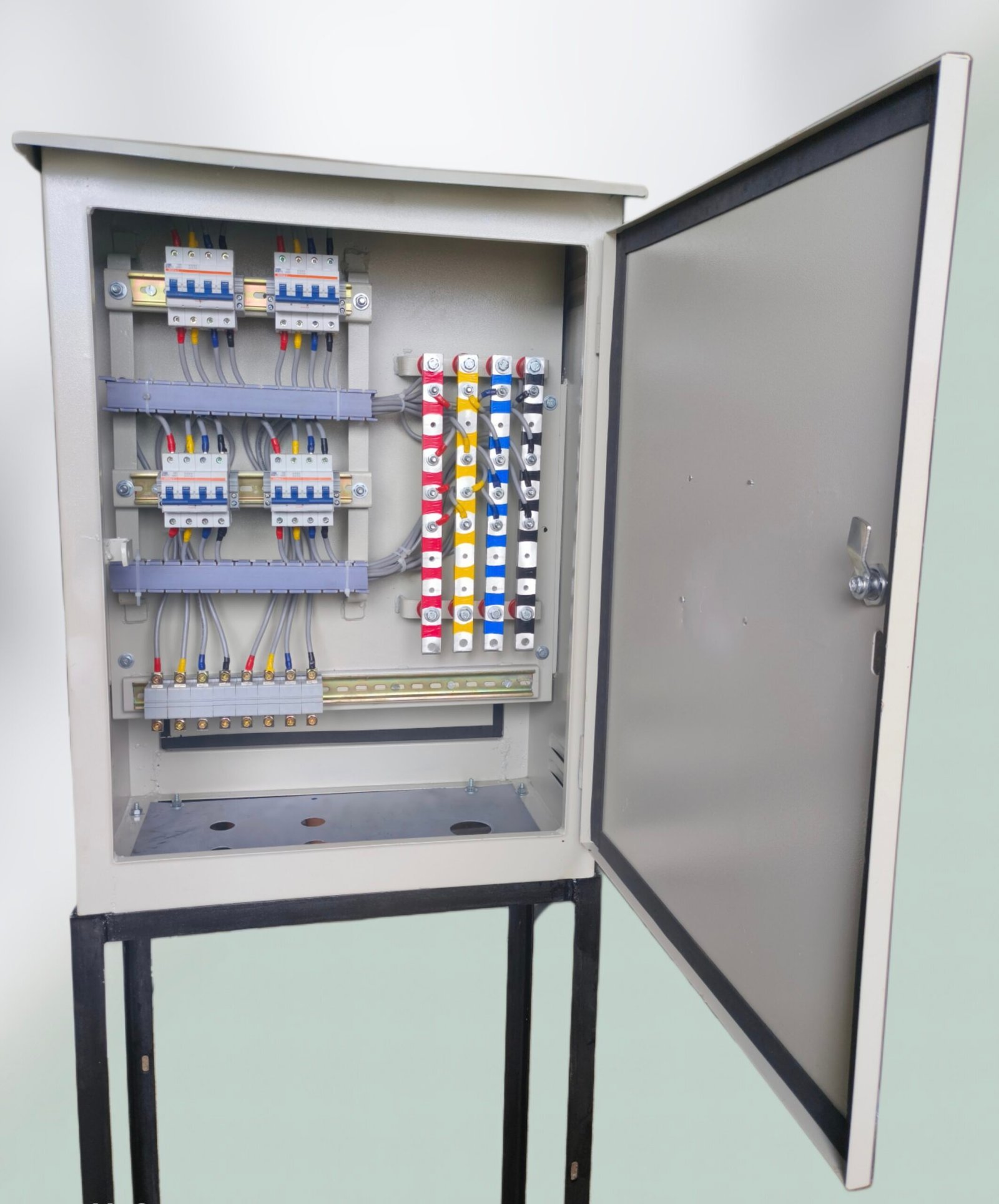

Product Gallery

Explore our high-quality manufacturing standards and finished electrical panel assemblies built for long-term industrial deployment.

Key Features of MCCB Panel

Overload Protection

Adjustable trip parameters to safeguard equipment from current spikes

Heavy Duty Build

Robust CRCA metal enclosures engineered for high duty-cycle industrial plants

Short Circuit Breaking

High kA ratings ensuring swift fault clearance and operator safety

Low Maintenance

Modular switchgear layout ensuring fast servicing and minimal downtime

Customization & Component Options

We build open-execution and custom-enclosed MCCB distribution panels configured with trusted OEM components based on project specifications.

Metering & Indicators

Digital Multifunction Meters (MFM), Ammeters, Voltmeters, and Phase LED indicators.

Protection Relays

Integrated Earth Leakage Relays (ELR), Under/Over Voltage, and Phase Failure protection.

Brand Integration

Component selection with top circuit breaker brands (Schneider, Siemens, ABB, L&T, Legrand).

Enclosure Formats

Wall-mounted, floor-standing feeder pillars, Form 3b / Form 4a compartmentalized options.

How MCCB Panel Works

An MCCB panel utilizes molded case circuit breakers equipped with electromagnetic and thermal sensing elements. When the system detects a sustained overload, a bimetallic strip heats up and triggers the tripping mechanism.

In cases of severe short-circuit currents, an internal solenoid senses the electromagnetic surge and trips the breaker instantly, extinguishing electrical arcs within specialized arc chutes. This rapid response protects delicate downstream machinery and main power distribution lines.

Technical Specifications

Rated Operational Voltage (Ue)	240V – 690V AC, 50/60 Hz
Rated Current Capacity (In)	63A to 1600A (Custom busbar sizing)
Short-Circuit Breaking Capacity (Icu)	25kA / 36kA / 50kA / 70kA @ 415V
Pole Configurations	3 Pole (3P) / 4 Pole (4P)
Trip Unit Release Systems	Thermal-Magnetic (TMD) / Electronic Microprocessor (ETU)
Busbar Material	EC-Grade Copper / High Conductivity Aluminum with Tinned Plating
Enclosure Protection Class	IP54 (Indoor) / IP55 & IP65 (Outdoor Weatherproof)
Enclosure Construction	1.6mm / 2.0mm CRCA Sheet Metal with 7-Tank Powder Coating (RAL 7035)
Compliance Standards	IEC 60947-2, IS/IEC 60947-2, CPRI / ERDA Tested Formats

Our MCCB panels are manufactured according to Indian and international standards, ensuring maximal safety, continuous power distribution, and reliable protection for critical industrial loads.

Applications of MCCB Panel

Manufacturing Industries

Commercial Buildings

Power Distribution Systems

Electrical Control Panels

Looking for a Reliable MCCB Panel Manufacturer?

Get high-quality, durable, and customized MCCB panels for safe and efficient power distribution. Contact us today for expert solutions and best pricing.
